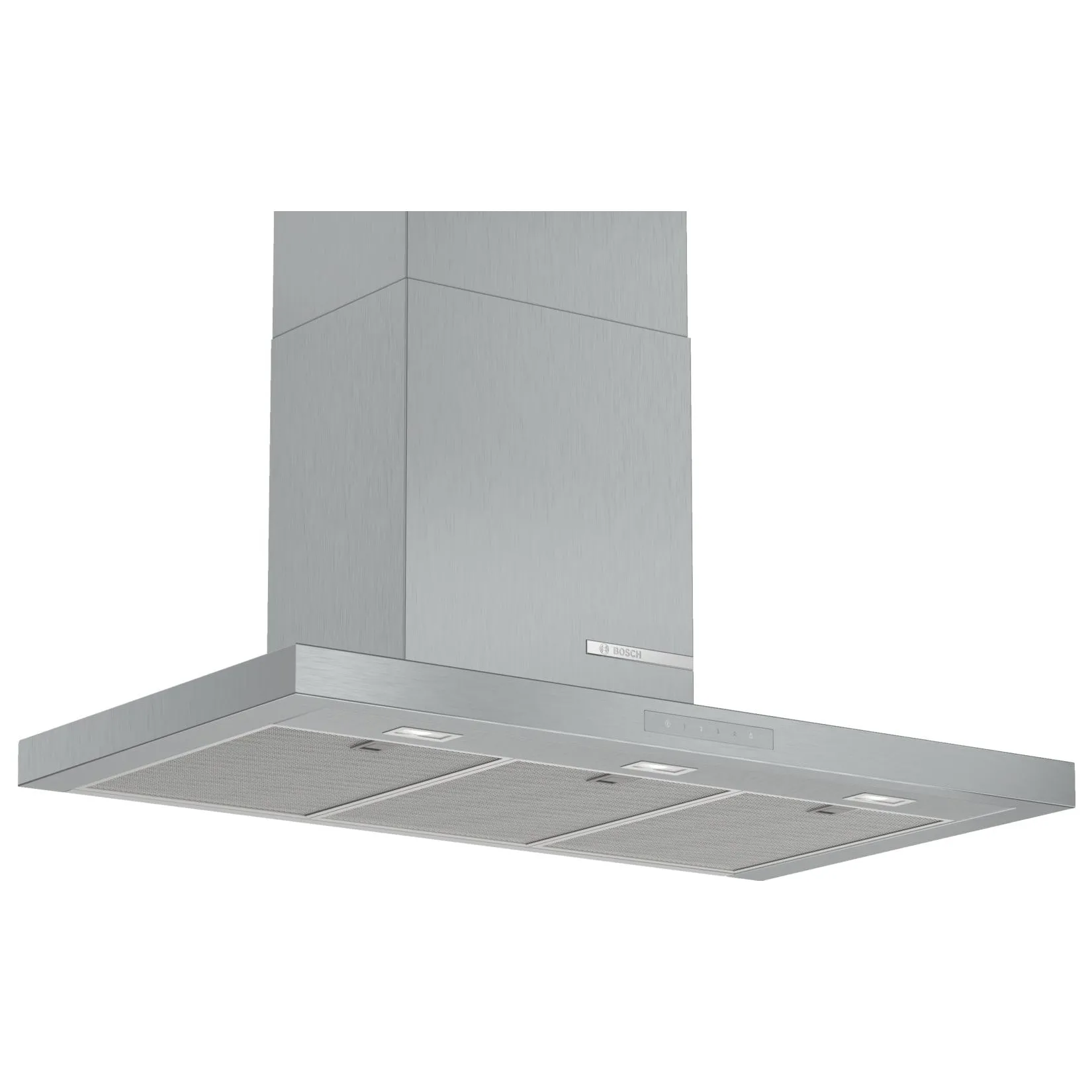

The wall-mounted chimney hood: Mount it on the wall for complete freedom in your kitchen planning
HIGHLIGHTS
|
A strong heart that beats quietly. Through the use of a high-powered fan and optimised air flow within the hood, a Bosch cooker hood with EcoSilence Drive™ motor technology saves over 80% in energy during average operation* compared with a tradition Bosch cooker hood. In addition, the EcoSilence Drive™ motor causes no mechanical friction. So instead of wasted energy, wear and noise, that means efficiency, durability and quiet running. And you can really hear the difference. * With an average fan operation of one hour on level 2 per day and with the light on for 2 hours per day. |
|
Low noise levels Your guests are not alone in appreciating a relaxed cook. So you can chat with your guests while cooking, we have made our recirculation cooker hoods so quiet you hardly notice them. Generally, a swishing sound is generated by the noise of the motor itself and the air flow, depending on the level of counterpressure. On ducted models, 50 % of the noise is ducted to the outside. Bosch cooker hoods with the CleanAir module generate up to 3 dB(A) less noise than conventional recirculation systems while offering the same performance. |
|
The optimum air volume for kitchen of all sizes. No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume. |
FEATURES
|
DESIGN
|
|
KEY FUNCTIONS
|
|
COMFORT
|
|
TECHNICAL INFORMATION
|
SPECIFICATIONS
| GENERAL | |
| Width | 90 cm |
| Depth of the product | 500 mm |
| Construction type | Built-in |
| Operating Mode | Convertible |
| Sound pressure max. normal | 42 dB (A) |
| Type of control setting and signalling devices | LED, touch control |
| Total annual energy consumption | 29.0 kWh/annum |
| Power consumption standby/display off | 0.2 W |
| CONSTRUCTION TYPE | |
| Diameter of air outlet (mm) | 120 / 150 mm |
| Colour | Stainless steel |
| Grease filter material | Washable aluminium |
| Grease filter type | Kassette |
| Installation typology | Wall-mounted |
| Material of the body | Stainless steel |
| Motor location | Integrated motor in hood chimney |
| Number of motors | 1 |
| Operating Mode | Convertible |
| Typology | Chimney |
| CONNECTION | |
| Connection rating (W) | 145 W |
| Length electrical supply cord (cm) | 130 cm |
| Frequency (Hz) | 60; 50 Hz |
| Total power of the motors (W) | 140 W |
| Voltage (V) | 220-240 V |
* In accordance with the EU-Regulation No 65/2014
