90x90 TRACTRIX HORN
The Tractrix® horn geometry helps to improve high-frequency response and extension while enhancing imaging and dynamics. It also focuses the high-frequency sounds towards the listening area, for the cleanest, most natural sound possible.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM TWEETER
The same tweeter used in the Reference Premiere box line, a Linear Travel Suspension maximizes dynamics for enhanced, detailed performance. LTS Tweeters have been a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.
SPUN COPPER CERAMETALLIC WOOFERS
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS tweeter, it provides speaker efficiency the highest in its class.

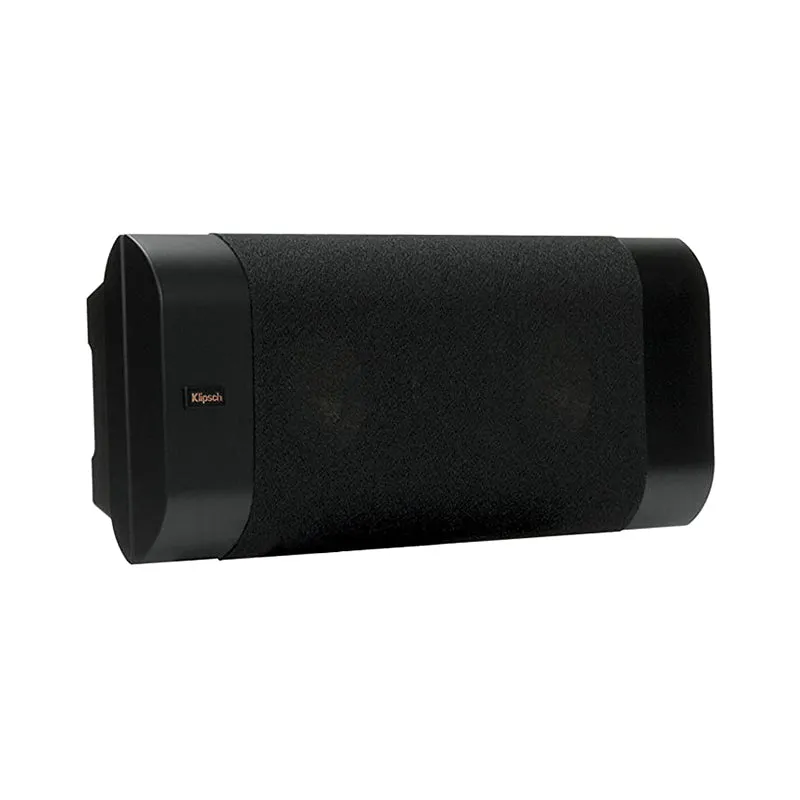

WRAP-AROUND MAGNETIC GRILLE
The front grille attaches magnetically for an elegant transition from a powerful showstopper to a discrete performance piece.

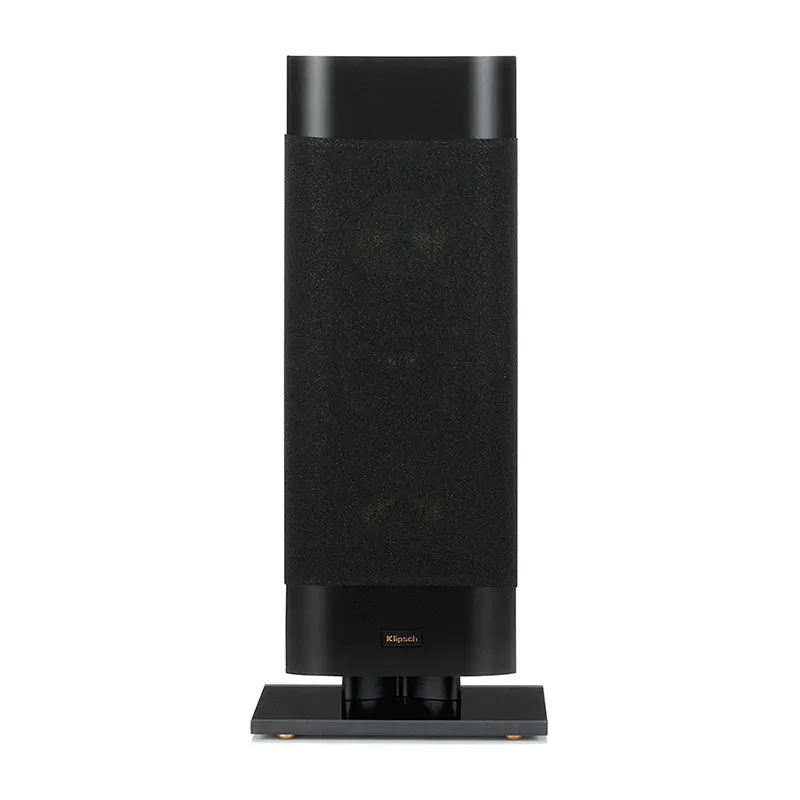

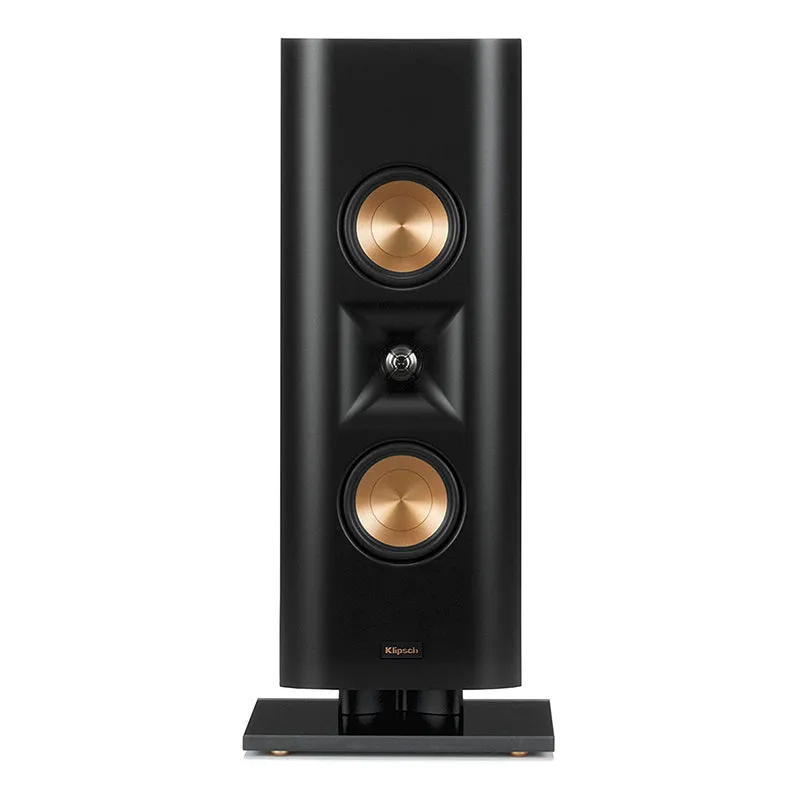

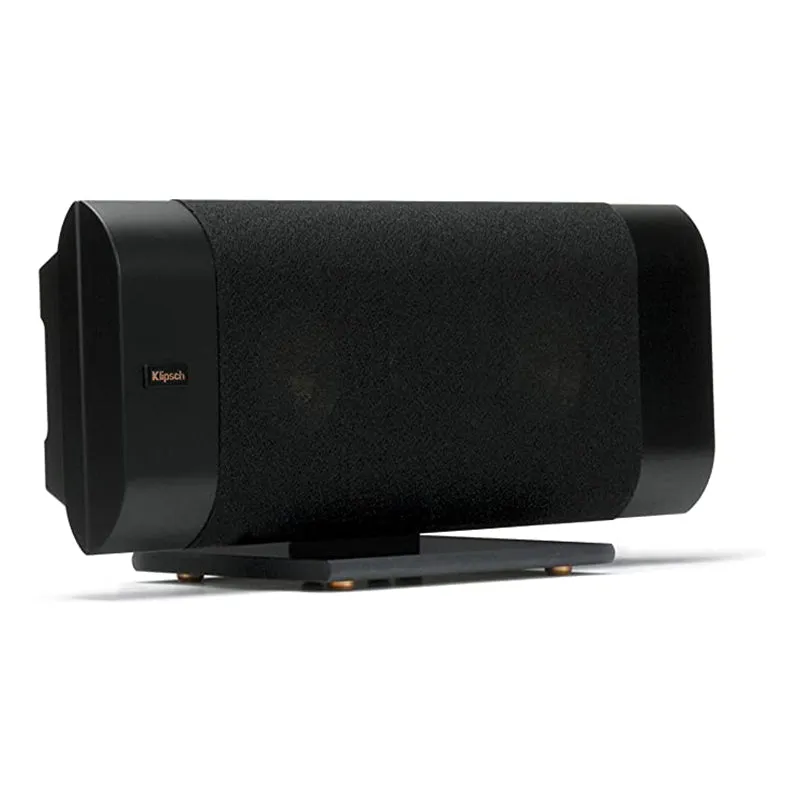

TABLE MOUNT INCLUDED

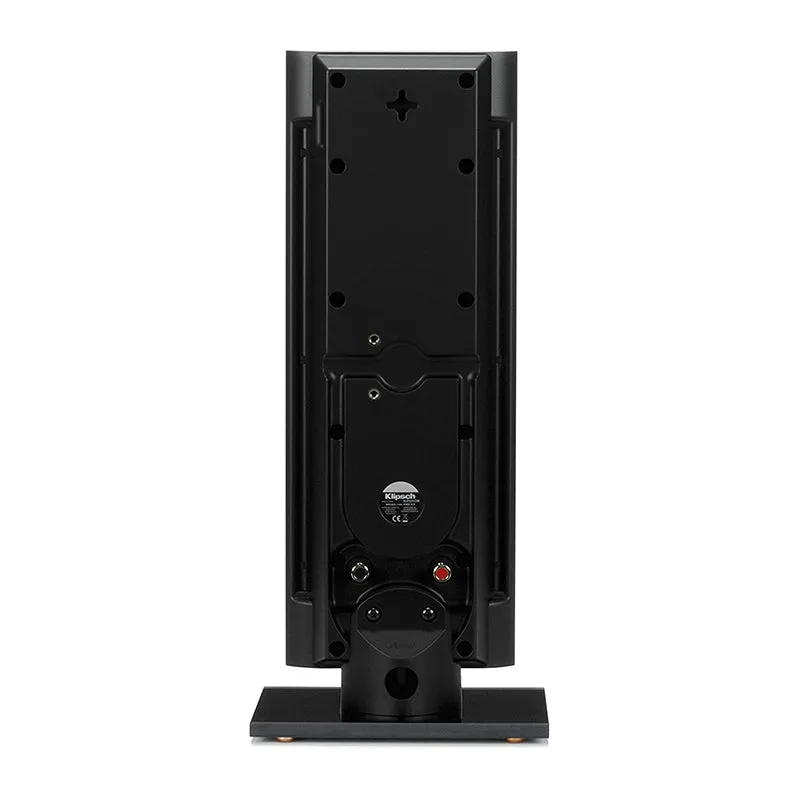

Dual four-way keyholes allow for easy, tight-to-the-wall mounting either vertically or horizontally, while the included glass base provides a luxurious, modern table-top or bookshelf option.
SPECIFICATIONS
| Frequency Response | 67Hz-25kHz /- 3dB |
| Sensitivity | 94dB @ 2.83V / 1m |
| Power Handling | 75W / 300W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 2200Hz |
| High-Frequency Driver | 1” (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn |
| Low-Frequency Driver | Dual 3.5” (8.89 cm) Cerametallic Cone Woofers |
| Enclosure Material | ABS |
| Enclosure Type | Bass Reflex |
| Inputs | Single Binding Posts |
| Height | 16" (40.64 cm) |
| Width | 6" (15.24 cm) |
| Depth | 2.4" (6.10 cm) |
| Weight | 5.25 lbs (2.38 kg) |
| Finish | Matte Black Paint |
| Built From | 2017 |
